BetaDraxon VR Training SyllabusIntroduction to Pushback Driving
Virtual RealityDescription
This lesson introduces the mechanics of pushback driving, focusing on the dual-pivot system connecting the tractor, towbar, and aircraft. Through four progressive demonstrations, trainees observe how tractor steering translates counter-intuitively through two pivot points, learn to focus on aircraft tail position rather than tractor direction, and understand the danger of over-correction. The lesson concludes with a complete pushback demonstration and interactive prediction exercises to confirm understanding of steering behavior.
Lesson Overview
- 1Identify the tractor, towbar, and aircraft as the components of the pushback system
- 2Understand the interaction of the two pivot points and why pushback steering is counter-intuitive
- 3Recognize the danger of over-correction and the consequences of exceeding the towbar angle limit
- 4Watch a complete professional pushback maneuver with real-time callouts
- 5Predict aircraft tail movement from steering inputs in interactive scenarios
Skills Acquired
- Understand why tractor steering inputs produce counter-intuitive aircraft tail movement
- Predict aircraft tail direction from a given tractor steering input
- Recognize over-correction risk and the towbar angle limit that leads to jackknifing
- Build a mental model for safe, controlled pushback driving before hands-on practice
Lesson Procedure

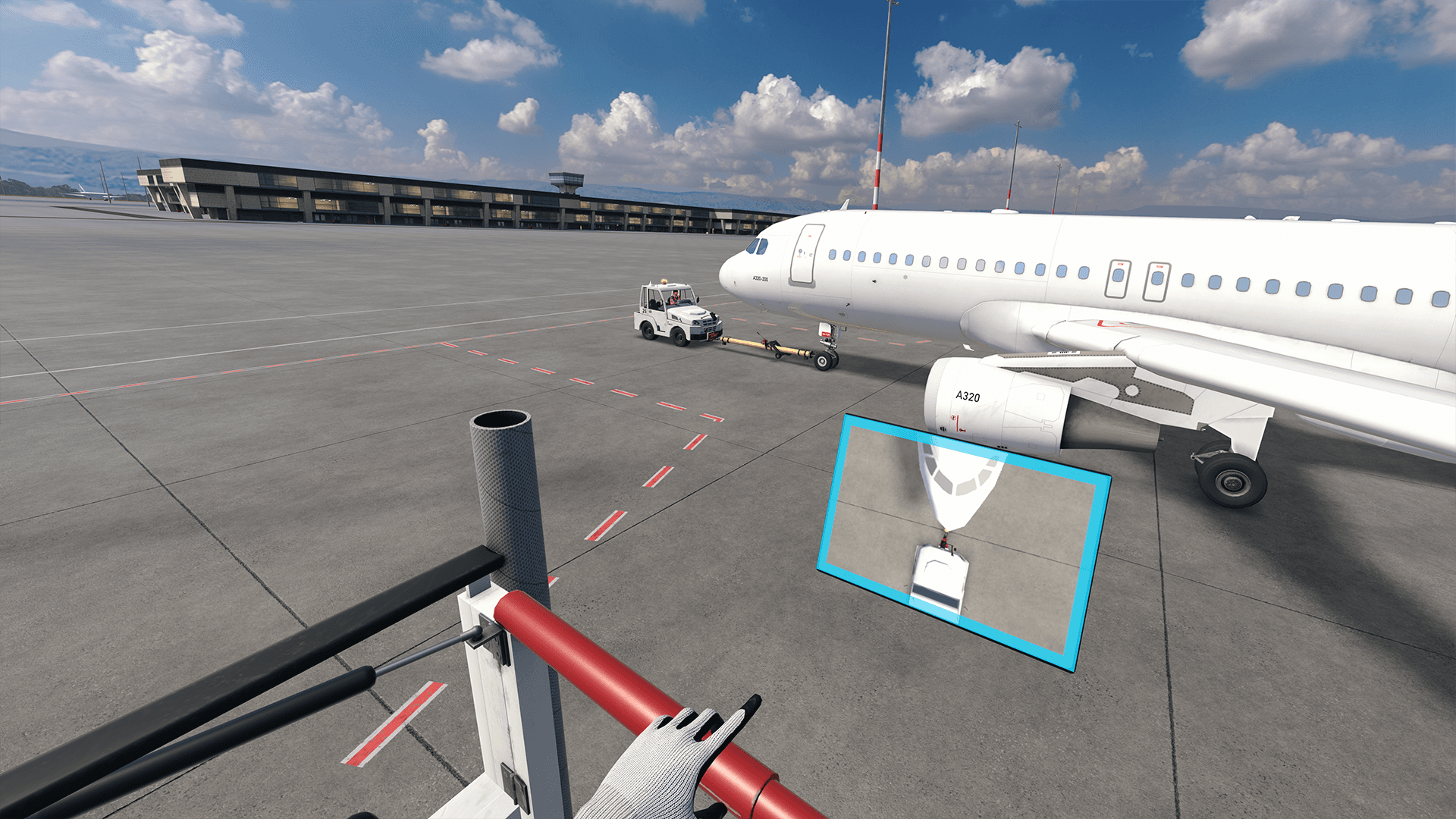

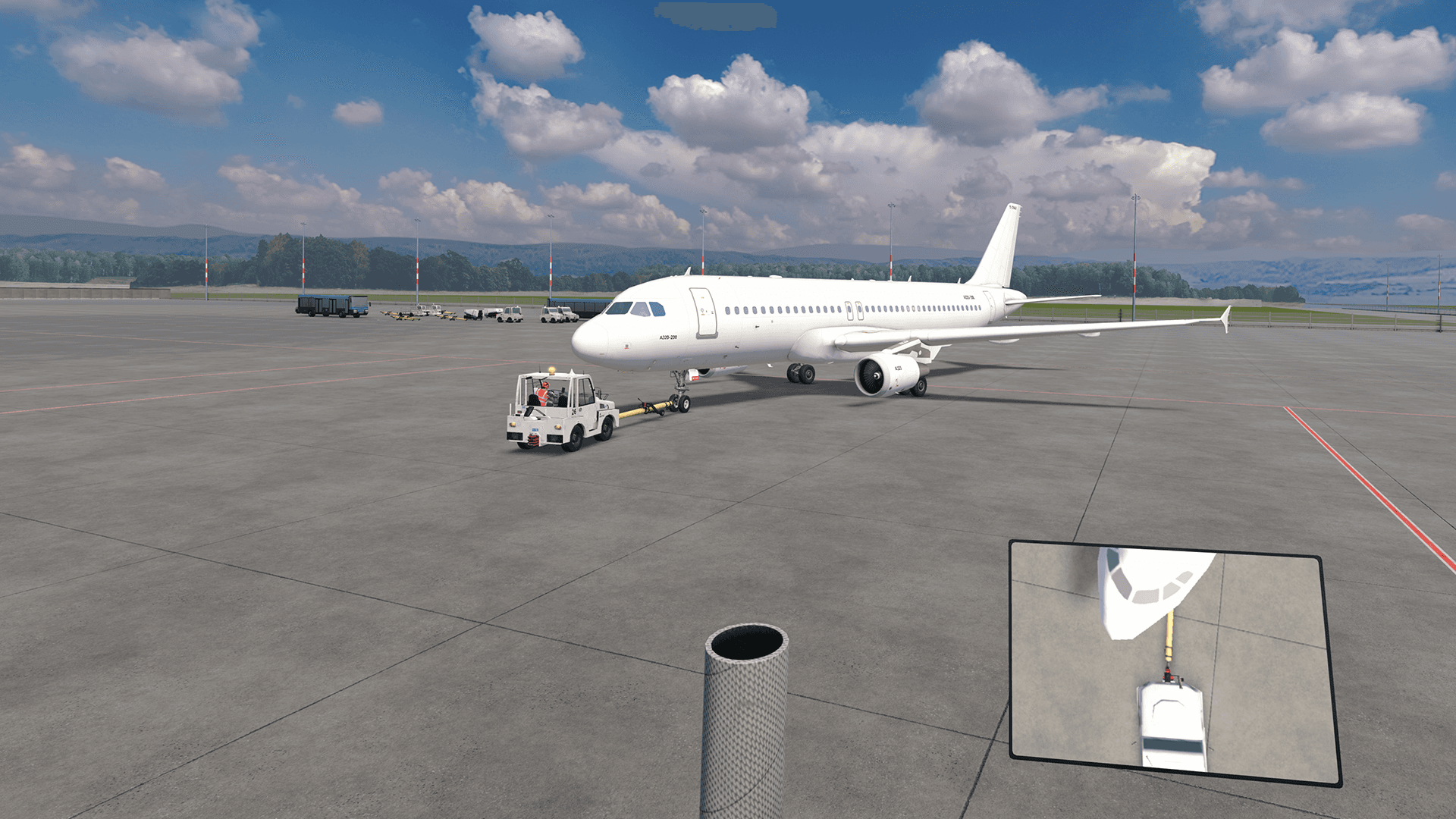

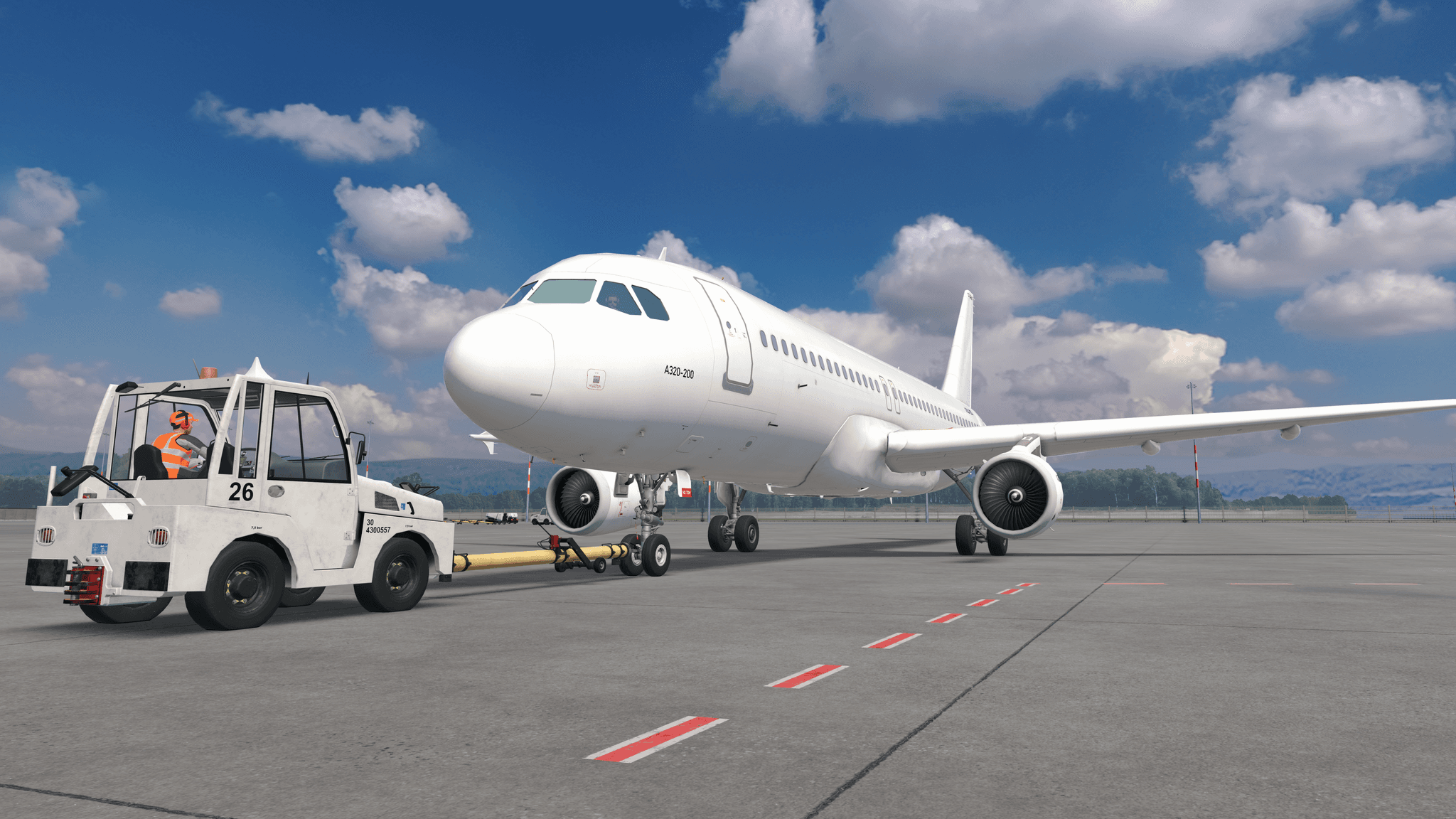

- The lesson opens on the apron, where each component of the pushback system is highlighted: the tractor, towbar, and aircraft nose gear connection.

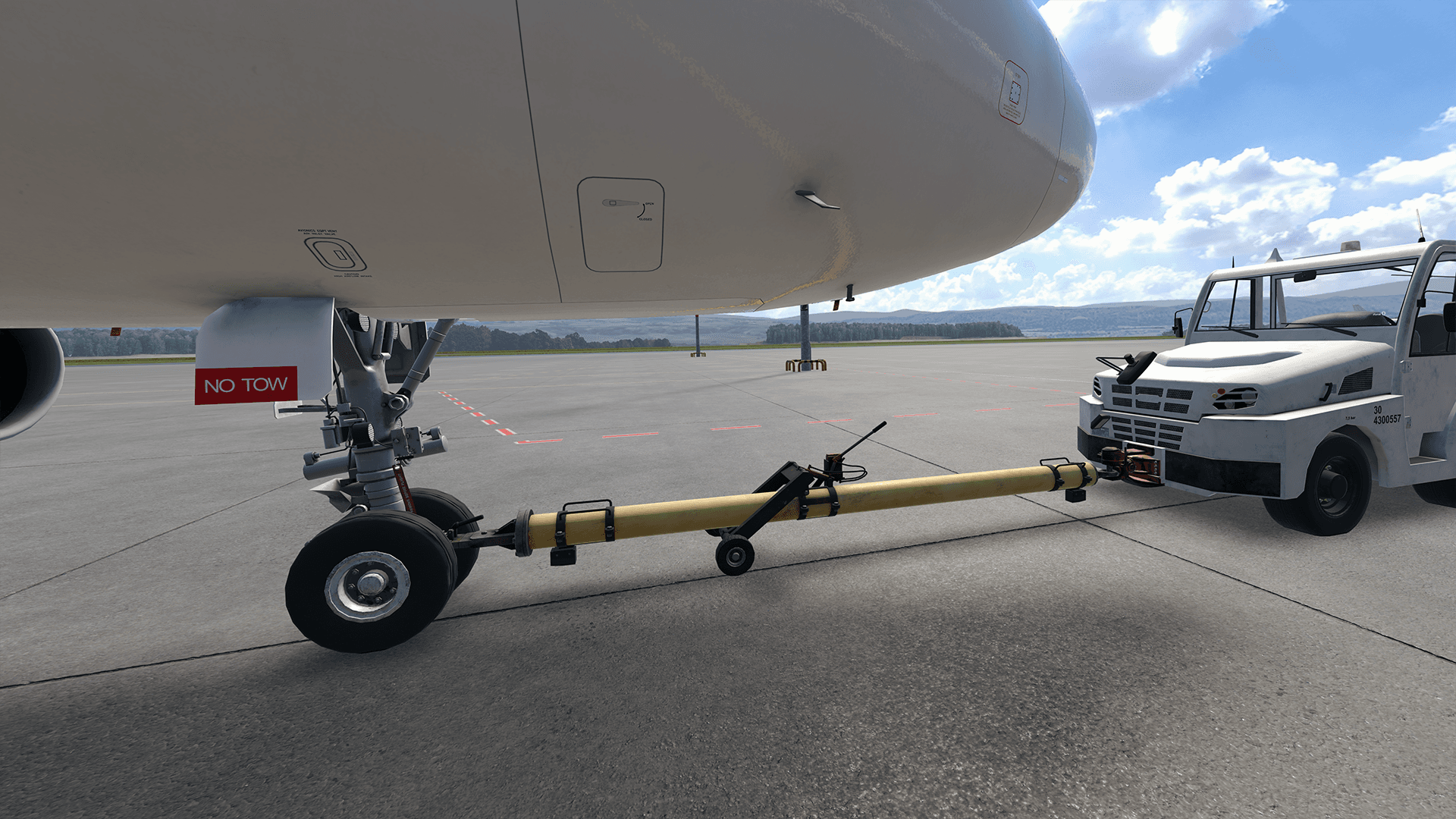

- The two pivot points at the tractor-towbar connection and at the towbar-nose gear connection are identified, introducing the key principle: two pivot points create two direction changes.

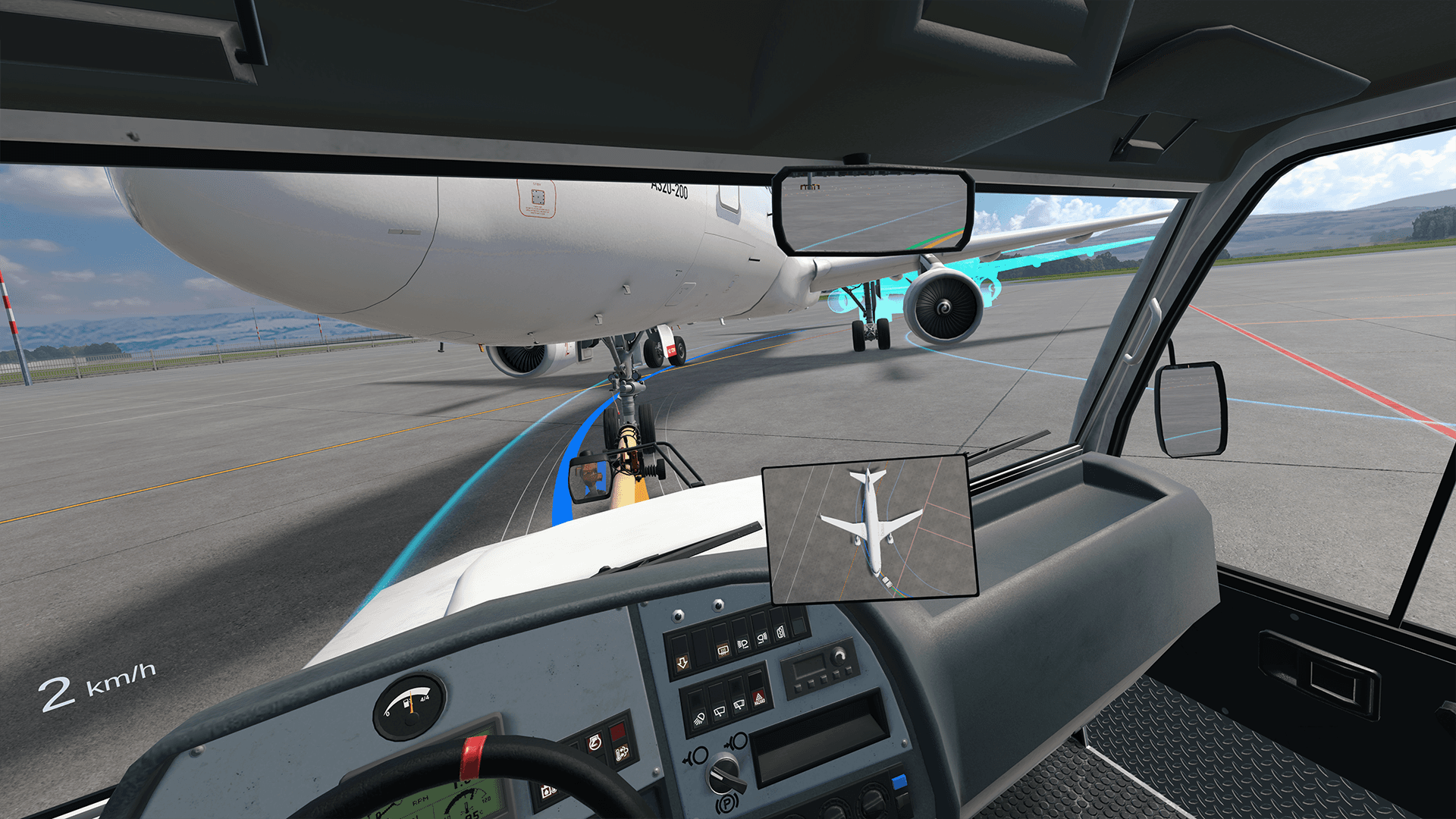

- The trainee moves into the tractor cabin, where a digital dashboard displays a real-time top-down tactical view alongside the windshield view of the apron.

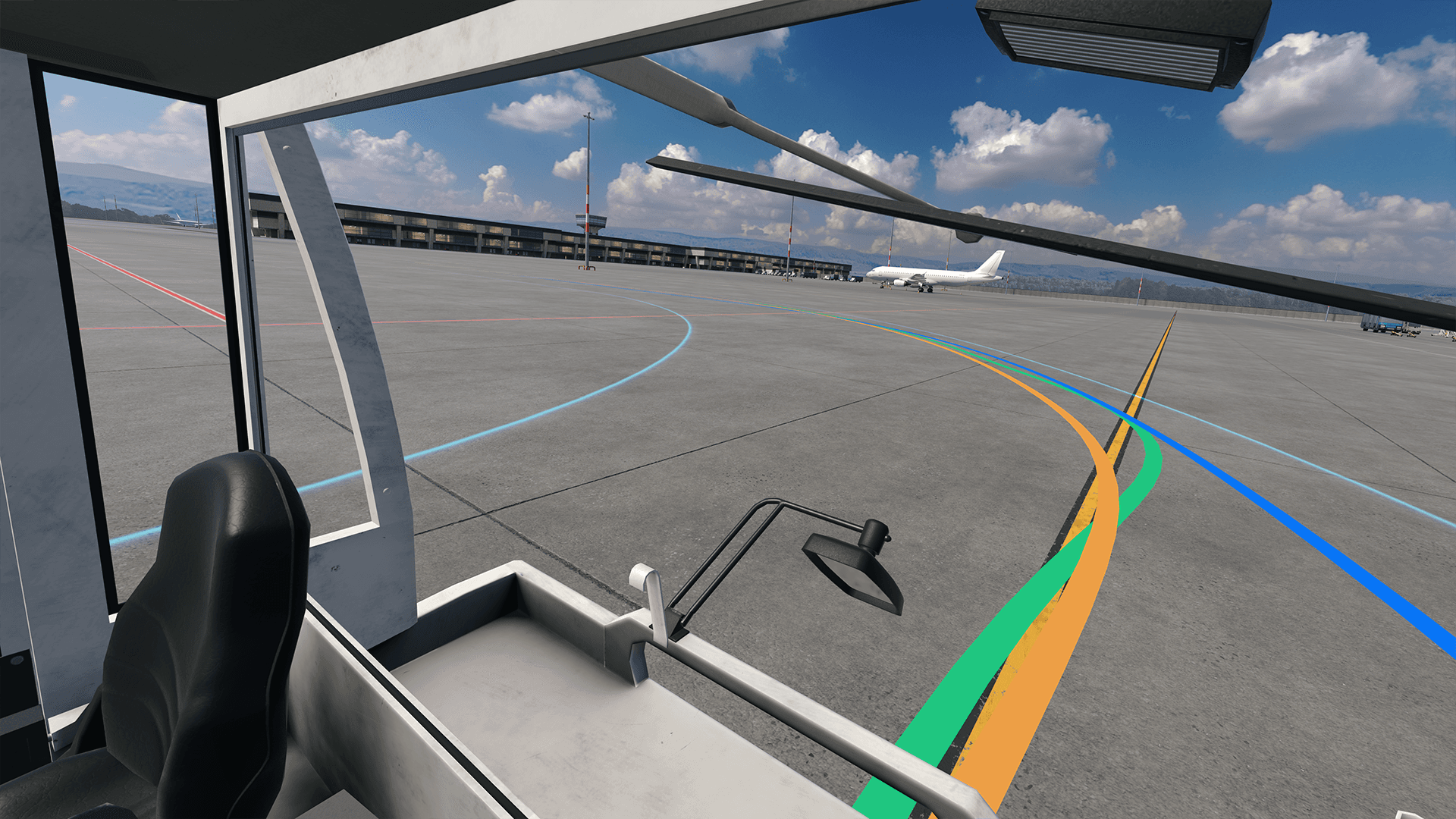

- First, the autopilot drives the tractor through a straight section and a gentle right turn; animated hands show steering inputs.
- Then, the towbar is added and the same path is driven; the towbar swings left as the tractor turns right.
- Then, the aircraft is added; the full system effect plays out: steer right, towbar swings left, aircraft tail moves right.
- Erratic over-corrections are demonstrated with an animation: steering corrections build up, the towbar angle reaches the no tow limit, leading to the shear pins breaking and damage to the nose gear.
- Finally, an autopilot performs a complete pushback maneuver showing the ideal process: A right turn to a 90° position, and final alignment on the taxiway centerline, with callouts at key moments.
Safety Scenarios & Learnings
Over-correction causing the towbar to pass the no tow zone
Triggers an animation showing that recovery is no longer possible and the damage caused to the nosegear.
Triggers an animation showing that recovery is no longer possible and the damage caused to the nosegear.
Erratic steering corrections
Warning; demonstrates that progressive over-steering leads to loss of control, contrasted against the smooth, controlled path
Warning; demonstrates that progressive over-steering leads to loss of control, contrasted against the smooth, controlled path
